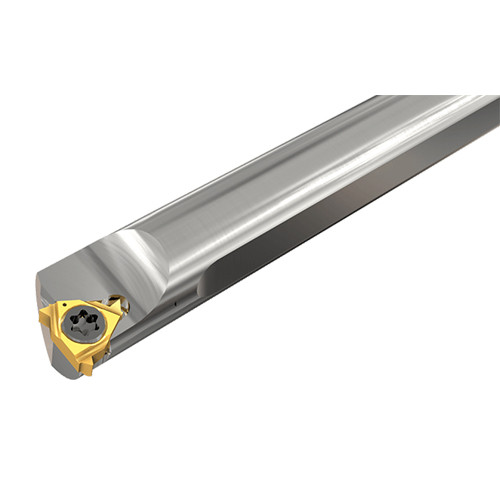

MGSIR 08-06
Grooving Toolholder; 0.315″ Shank Dia. × 2.835″ OAL ; Carbide

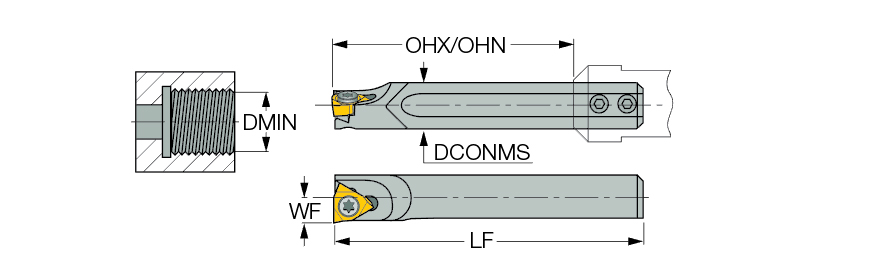

| Minimum Bore Diameter (DMIN) | 0.362″ | Application | | Internal Threading lay down | |
| Functional Width (WF) | 0.197″ | Body Material | Carbide |
| Overall Length (OAL) | 2.835″ | Tool Type | Internal Indexble -Turn Tool |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Solid carbide bars for internal turning and threading | Country of Origin | Israel |
| Remarks | In rder to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth |
Shipping Info
Package Weight
0.145
