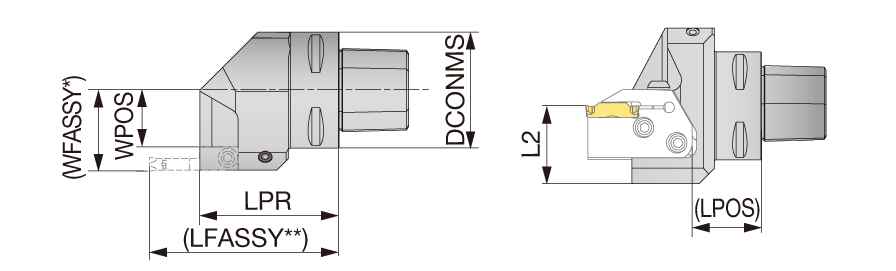

C5CHSL35060
Grooving Toolholder ; 1.799″ OAL ; 1.26″ Shank Height ; 50 mm Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 50 mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 1.26″ | Body Material | Steel |
| Functional Width (WF) | 0.189″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Overall Length (OAL) | 1.799″ | Measurement Type | Inch |
Product Features
| Family Description | "TungCap" Shank of toolholders for CAER/L & CAFR/L blades | Country of Origin | Japan |
| Remarks | The last character of designation is "N":Capable for 7MPa coolant pressure. |
Shipping Info
Package Weight
2.6
