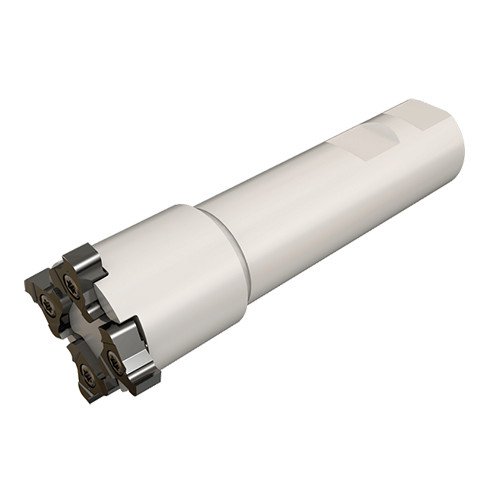

TRIB 50-1.250W 6Z-B
Grooving Toolholder ; 4.535″ OAL ; 1-1/4″ Shank Dia. ; 0.158″ CW Min. ; 0.256″ CW Max. ; 0.189″ Max Depth ; Steel

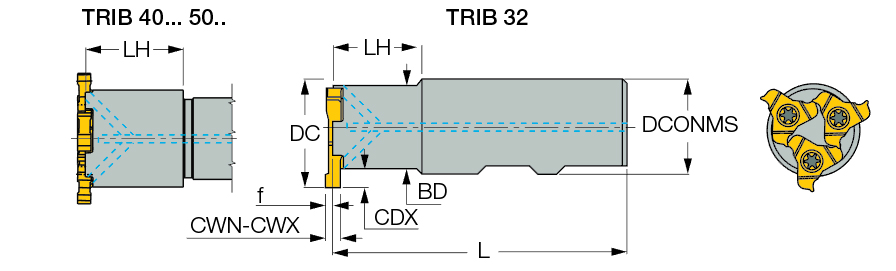

| Cutting Width Minimum (CWN) | 0.158″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 0.256″ | Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | |
| Cutting Diameter (DC) | 1.968″ | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 0.189″ | Tool Type | Double-sided slotting cutters |
| Head Length (LH) | 1.18″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.535″ | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features

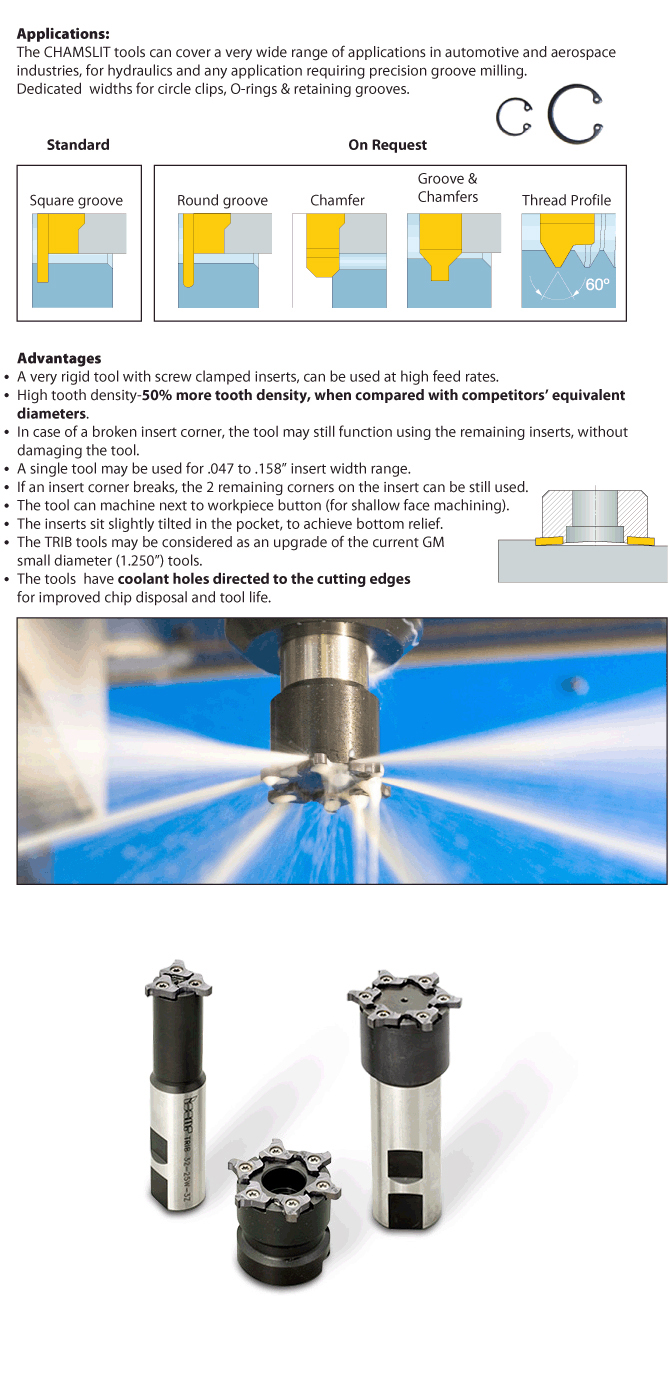

| Family Description | Slitting shanks carrying triple-edged precision ground inserts. | Country of Origin | Israel |
| Remarks | W, Tmax, f, Refer to insert data For inserts with W=.158-.256, order tools with -B suffix (deeper pockets). For example: TRIB 50-1.25W-6Z-B For adaptation click on More Info |
Shipping Info
Package Weight
1.958
