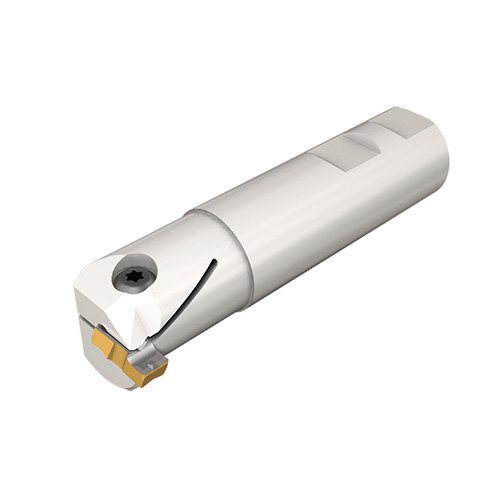

GM 30-W.750
Grooving Toolholder; 3/4″ Shank Dia. to 0.157″ Width × 0.2″ Max Depth × 3.6″ OAL ; Steel

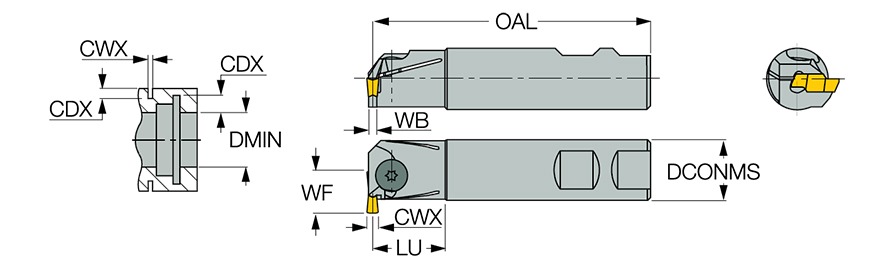

| Cutting Width Maximum (CWX) | 0.157″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter (DC) | 1.16″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.2″ | Application | | Internal Groove Milling | Side Slotting | |
| Body Width (WB) | 0.095″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.181″ | Tool Type | Slitting cutters |
| Functional Width (WF) | 0.58″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.6″ | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Endmills for groove milling, carrying GMP and GIPI/GIFI inserts (CUT-GRIP) | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info For CWX<.157, maximum grooving depth: 1 |
Shipping Info
Package Weight
0.489
