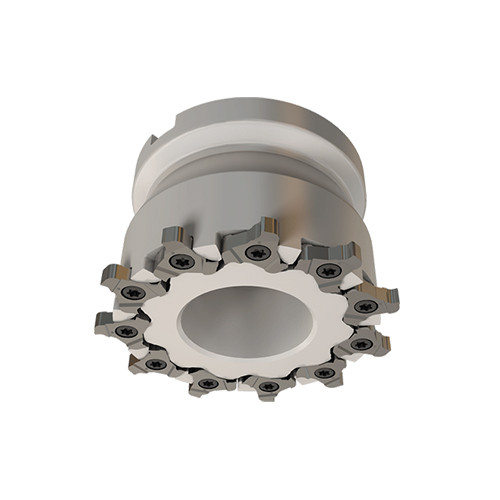

TRIB 3.0-1.00SM 11Z-B
Grooving Toolholder ; 1.964″ OAL ; 0.158″ CW Min. ; 0.256″ CW Max. ; 0.189″ Max Depth ; Steel

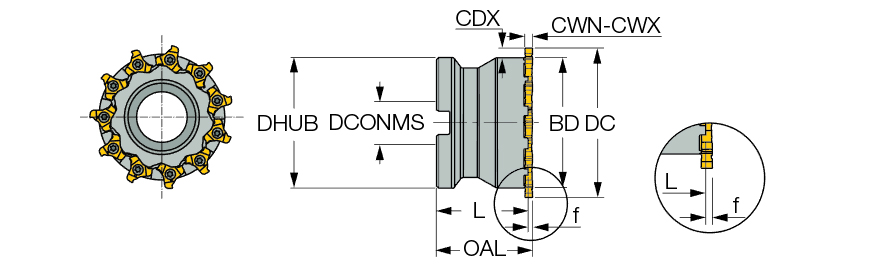

| Cutting Width Minimum (CWN) | 0.158″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.256″ | Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 0.189″ | Tool Type | Double-sided slotting cutters |
| Overall Length (OAL) | 1.964″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features

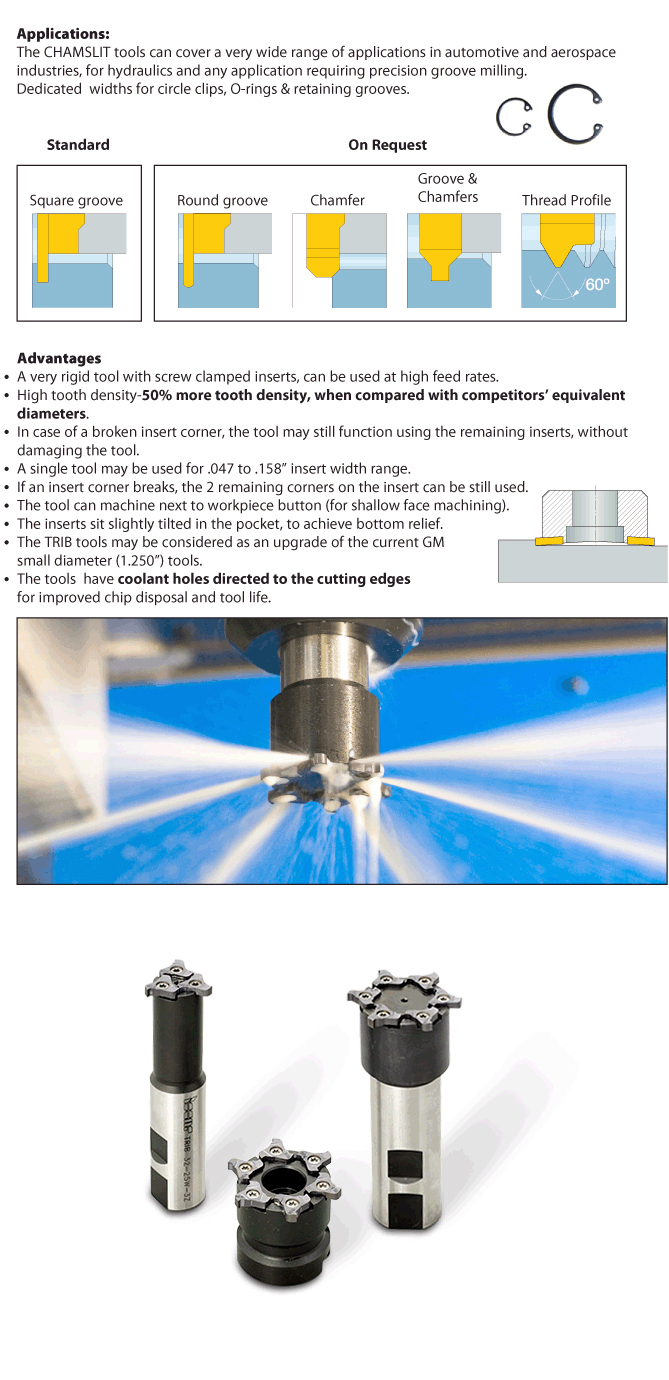

| Family Description | Grooving shell mills with triple-edged precision ground inserts. | Country of Origin | Israel |
| Remarks | CWN,CWX,CDX, f, Refer to insert data For inserts with CW=.158-.256, order tools with -B suffix (deeper pockets). For example: TRIB 2.5-.75SM-8Z-B For user guide, see More Info |
Shipping Info
Package Weight
2.319
