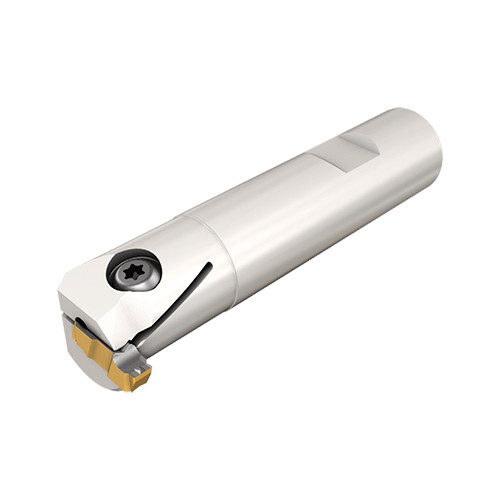

GM 35-W25
Grooving Toolholder; 25 mm Shank Dia. to 6.4 mm Width × 5 mm Max Depth × 100 mm OAL ; Steel

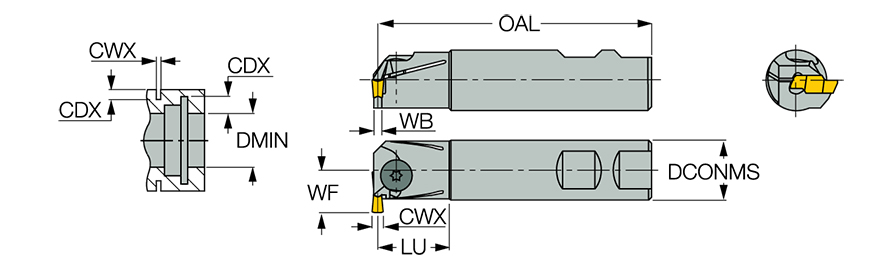

| Cutting Width Maximum (CWX) | 6.4 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 34.6 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 5 mm | Application | | Internal Groove Milling | Side Slotting | |
| Body Width (WB) | 3.5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 35 mm | Tool Type | Slitting cutters |
| Functional Width (WF) | 17.3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Endmills for groove milling, carrying GIPI/GIFI/TIPI inserts (CUT-GRIP) | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info For CWX<4.0, maximum grooving depth: 2.5 mm |
Shipping Info
Package Weight
0.891
