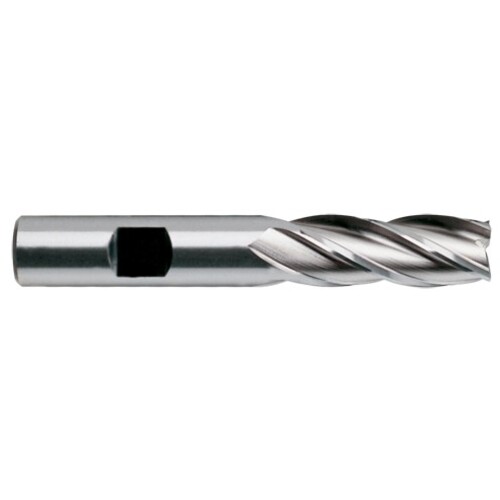

Square End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSS ; TiAlN-Futura ; Series E1031
SQ End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSS ; TiAlN ; Series E1031
| Cutting Diameter (DC) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | 4FL SE HSS, Regular Length |
| Overall Length (OAL) | 3-3/4″ | Length Group | Regular |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.625″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E1031 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | No |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1
Package Height
1
Package Weight
0.305
