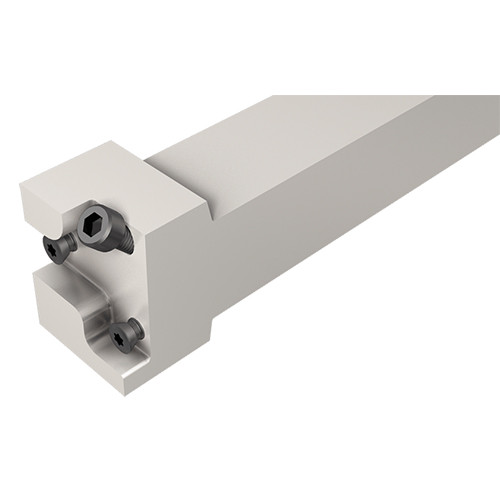

GHAPL 31.7-8
Grooving Toolholder; 1-1/4″ × 1-1/4″ Shank Size × 0.984″ Max Depth × 6.1″ OAL ; Steel

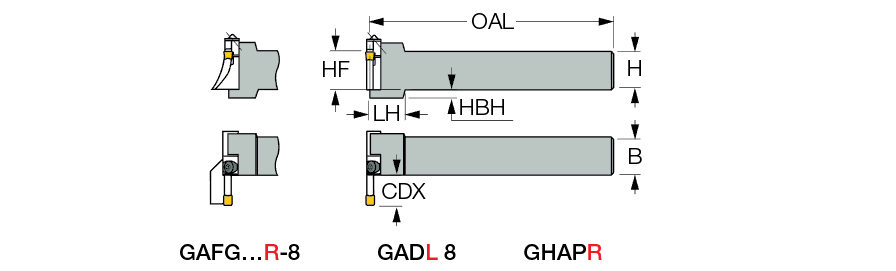

| Cutting Depth Maximum (CDX) | 1″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1-1/4″ | Body Material | Steel |
| Shank Width (B) | 1-1/4″ | Tool Type | Square Shanks |
| Head Length (LH) | 1.18″ | Measurement Type | Inch |
| Overall Length (OAL) | 6.1″ | Head Bottom Offset Height (HBH) | 0.29″ |
Product Features
| Family Description | External holders for grooving and turning with perpendicularly oriented GADR/L and GAFG adapters | Country of Origin | Israel |
| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving f=f1+f2 (see adapter dimensions) |
Shipping Info
Package Weight
3.276
