JSTGL1616K3
Grooving Toolholder ; 1.799″ OAL ; 16 mm Shank Height ; 16 mm Shank Width ; 0.33 mm CW Min. ; 3 mm CW Max. ; 0.787″ Max Depth ; Left Hand ; Steel

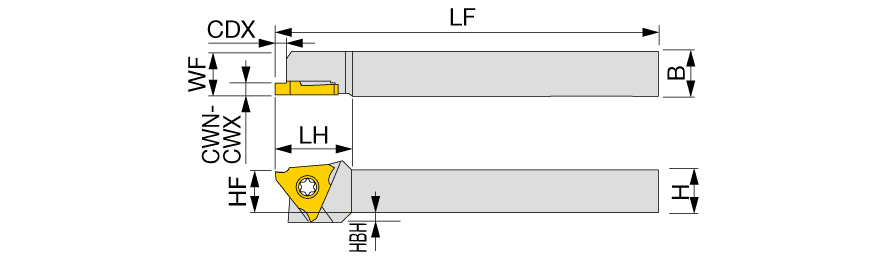

| Cutting Width Minimum (CWN) | 0.33 mm | Overall Length (OAL) | 1.799″ |
| Cutting Width Maximum (CWX) | 3 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.787″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 16 mm | Application | | External grooving | |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Functional Width (WF) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Length (LF) | 125 mm | Measurement Type | Metric |
| Head Length (LH) | 18.5 mm |
Product Features
| Family Description | External grooving toolholders for smale lathe | Country of Origin | Japan |
| Remarks | Recommend clamping torque: 1.2 Nm |
Shipping Info
Package Weight
0.571
