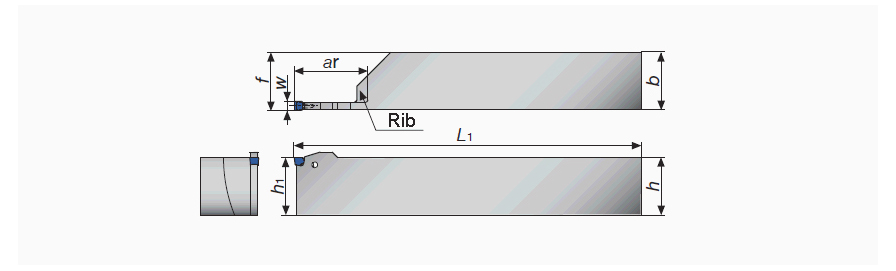

ETER3232-5T32
Grooving Toolholder ; 170mm OAL ; 32 mm Shank Height ; 32 mm Shank Width ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 170mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 32.4 mm | Measurement Type | Inch |
Product Features
| Family Description | External toolholders for grooving & turning | Country of Origin | Japan |
| Remarks | Wrench should be ordered separately. |
Shipping Info
Package Weight
2.498
