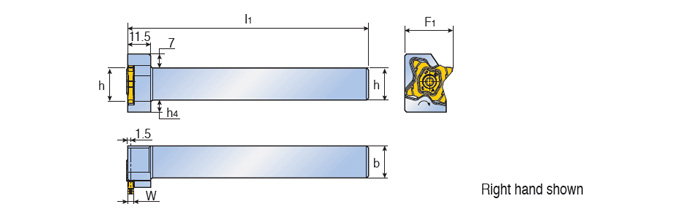

TQHPL 20-27
Grooving Toolholder ; 120mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 0.5 mm CW Min. ; 5.3 mm CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.5 mm | Overall Length (OAL) | 120mm |
| Cutting Width Maximum (CWX) | 5.3 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 28 mm | Measurement Type | Inch |
Product Features
| Family Description | Integral Shank toolholders | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.947
