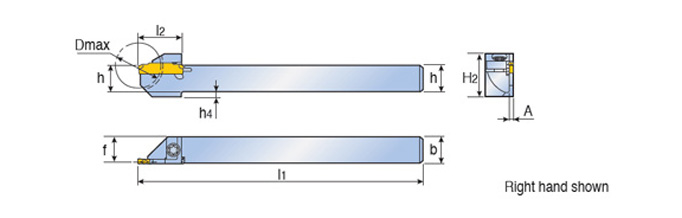

TTEL 12-24-1.4SH
Grooving Toolholder ; 125mm OAL ; 12 mm Shank Height ; 12 mm Shank Width ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 125mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 11.5 mm | Measurement Type | Inch |
| Head Length (LH) | 19.5 mm |
Product Features
| Family Description | Grooving and turning holders for Swiss-Type Automatics. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.33
