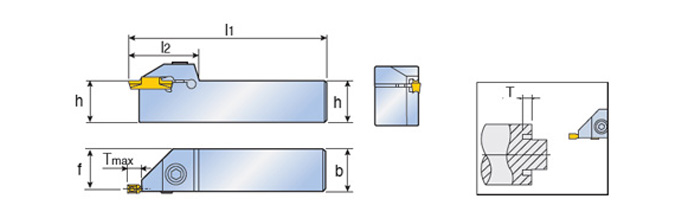

TGFL 2525-6
Grooving Toolholder; 25 mm × 25 mm Shank Size × 150 mm OAL
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 150mm |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 22.6 mm | Measurement Type | Inch |
| Head Length (LH) | 37 mm |
Product Features
| Family Description | External machining holders for shallow grooving. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.719
