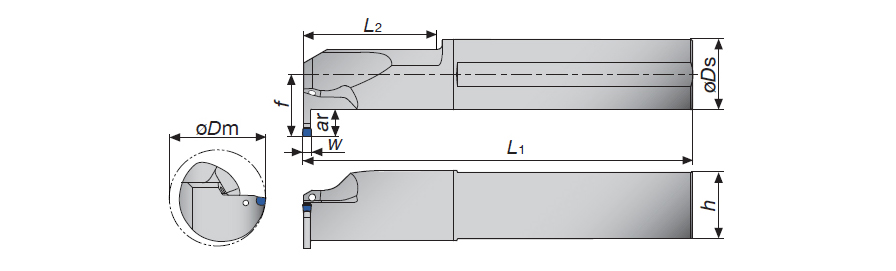

ETIR20-4T06-D250
Grooving Toolholder ; 160mm OAL ; 18 mm Shank Height ; 20 mm Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 160mm |
| Cutting Width Maximum (CWX) | 0.126″ | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Depth Maximum (CDX) | 0.787″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 18 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Minimum Bore Diameter (DMIN) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 17 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 40 mm | Measurement Type | Inch |
Product Features
| Family Description | Internal toolholders for grooving & turning | Country of Origin | Japan |
| Remarks | Wrench should be ordered separately. |
Shipping Info
Package Weight
0.723
