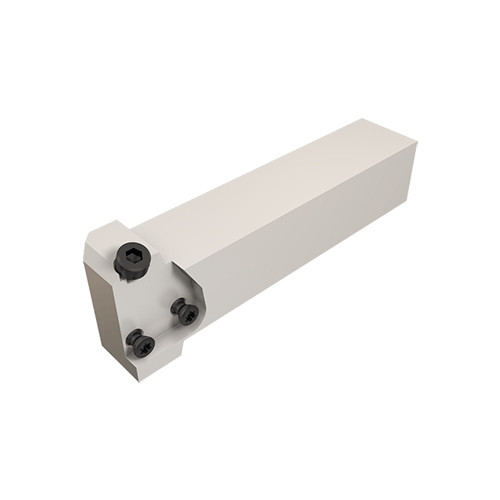

PHAL 25
Grooving Toolholder; 25 mm × 25 mm Shank Size × 16.3 mm Max Depth × 140 mm OAL ; Steel

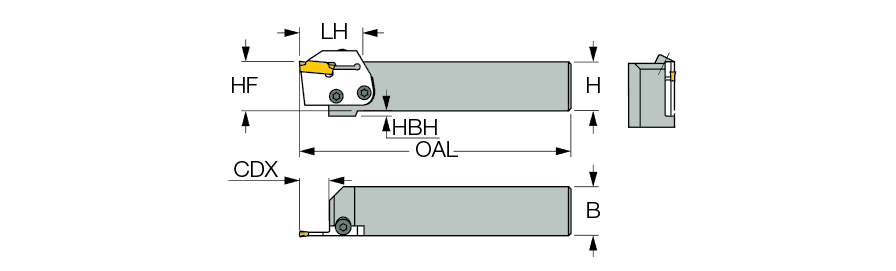

| Cutting Depth Maximum (CDX) | 16.3 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Square Shanks |
| Head Length (LH) | 35.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 140 mm | Head Bottom Offset Height (HBH) | 5 mm |
Product Features
| Family Description | Holders for grooving and turning adapters using GDMW/GDMY inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.486
