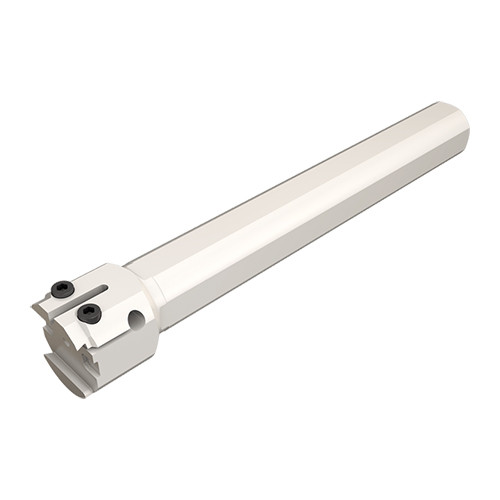

GHIC 38.1-50
Grooving Toolholder; 1.02″ × 1.42″ Shank Size 1-1/2″ Shank Dia. × 12″ OAL ; Steel

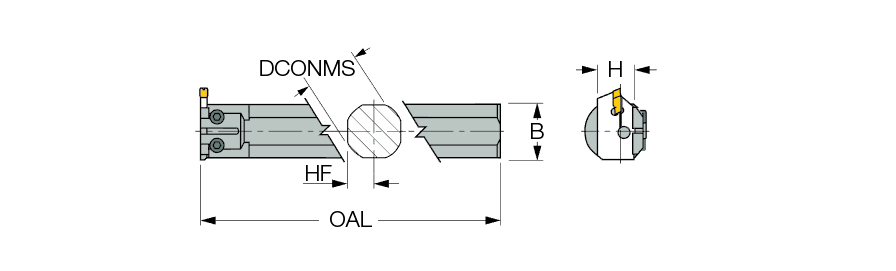

| Shank Height (H) | 1.02″ | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 1.42″ | Body Material | Steel |
| Overall Length (OAL) | 12″ | Tool Type | ISO A.N.S.I B.5.18-1972 (ISO-ER) |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Holder bars for internal blades, DMIN=1.96″. | Country of Origin | Israel |
| Remarks | The same tool applies on right and left machining |
Shipping Info
Package Weight
5.65
Related Documentation
Holder bar for indexable blades. Adjustable extension, right- and left-hand applications. For bore diameters down to 50 mm, bar GHIC-50 with blades for GIPI/GIFI inserts.
