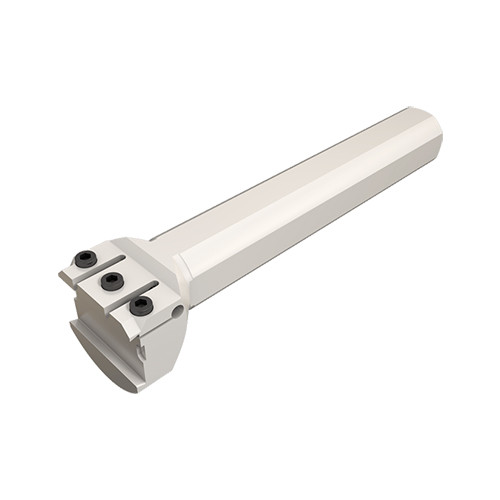

GHIC 50-85
Grooving Toolholder; 32 mm × 58 mm Shank Size 50 mm Shank Dia. × 300 mm OAL ; Steel

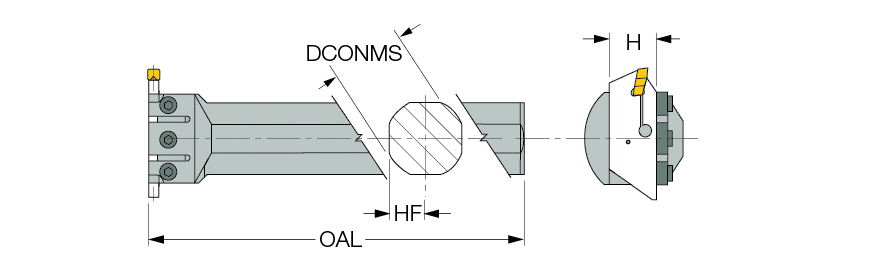

| Shank Height (H) | 32 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 58 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 85 mm | Tool Type | Round Shanks |
| Overall Length (OAL) | 300 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm |
Product Features
| Family Description | CUT-GRIP holders for internal grooving and turning blades, DMIN=85 mm. | Country of Origin | Israel |
| Remarks | For both right and left hand applications |
Shipping Info
Package Weight
10.084
