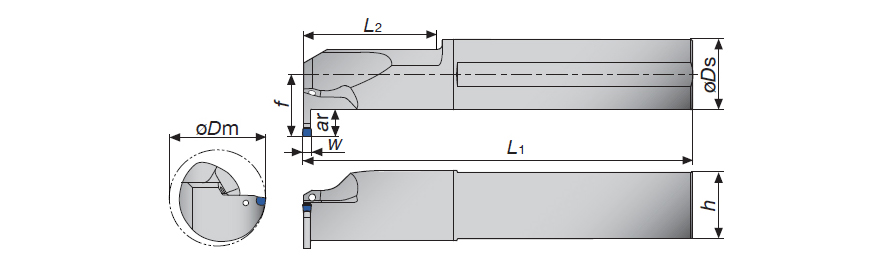

ETIL20-5T11-D24
Grooving Toolholder ; 10″ OAL ; 1.188″ Shank Height ; 1-1/4″ Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 10″ |
| Cutting Width Maximum (CWX) | 0.126″ | Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Depth Maximum (CDX) | 0.787″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1.188″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Minimum Bore Diameter (DMIN) | 1-1/2″ | Body Material | Steel |
| Functional Width (WF) | 1.09″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2.362″ | Measurement Type | Inch |
Product Features
| Family Description | Internal toolholders for grooving & turning | Country of Origin | Japan |
| Remarks | Wrench should be ordered separately. |
Shipping Info
Package Weight
0
