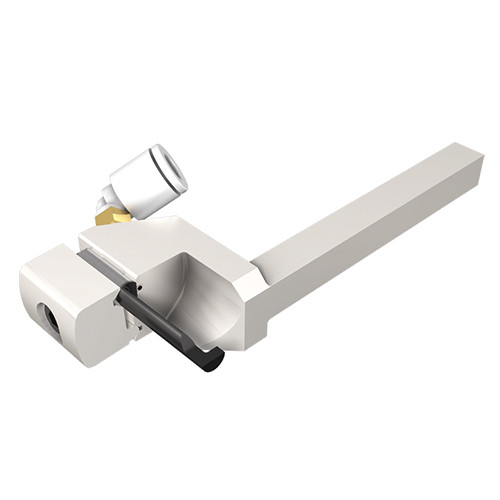

GHPCOR 16-16-4-6
Grooving Toolholder; 16 mm × 16 mm Shank Size 4 mm Shank Dia. × 16 mm Max Depth × 112 mm OAL ; Steel

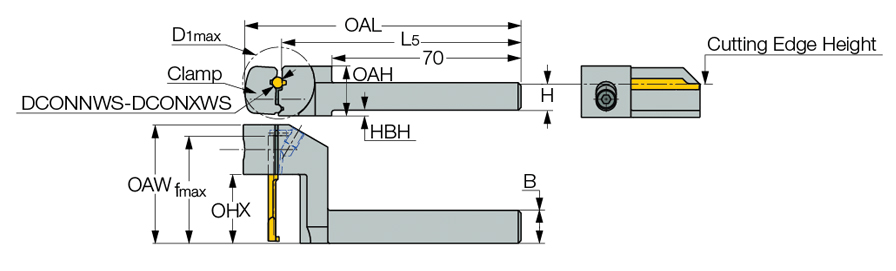

| Cutting Depth Maximum (CDX) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 16 mm | Axial Groove Outside Diameter Maximum (DAXX) | 36 mm |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Overall Length (OAL) | 112 mm | Tool Type | Square Shanks |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Measurement Type | Metric |
Product Features

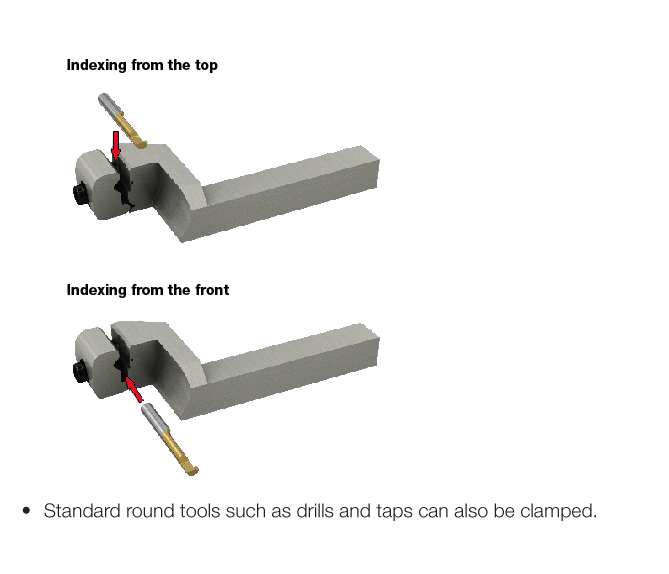

| Family Description | Perpendicular square-shank tools for use of PICCOCUT inserts on cross slide units of Swiss type machines. | Country of Origin | Israel |
| Remarks | PICCOCUT insert should not exceed OAW Left-hand holders are available upon request Coolant tube adapter: KQ2L06-M5 (for 6 mm coolant tube) |
Shipping Info
Package Weight
0.736
