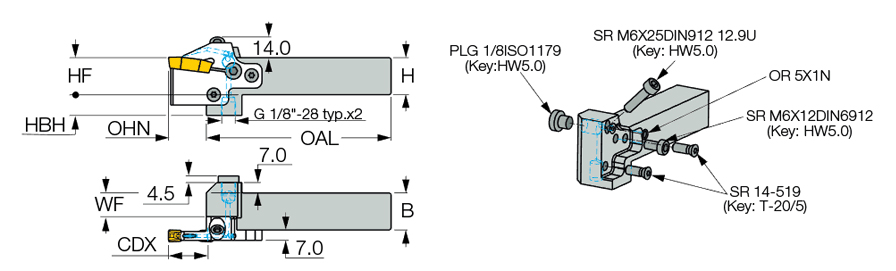

GHAL 25-8-JHP
Grooving Toolholder; 25 mm × 25 mm Shank Size × 25.5 mm Max Depth × 124.5 mm OAL ; Steel
| Cutting Depth Maximum (CDX) | 25.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Square Shanks |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 124.5 mm | Head Bottom Offset Height (HBH) | 14 mm |
Product Features
| Family Description | Holders with high-pressure coolant channels for grooving and turning adapters carrying 8 mm width inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.726
