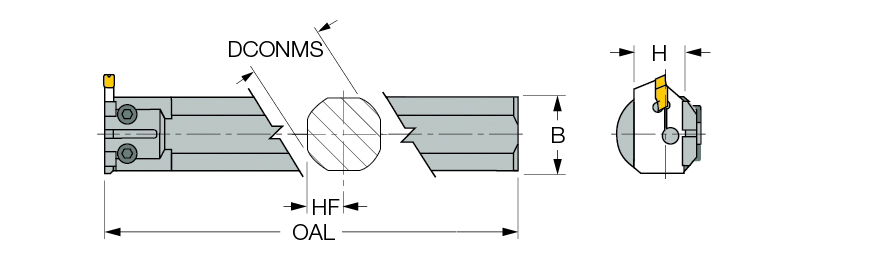

GHIC 40-50
Grooving Toolholder; 26 mm × 36 mm Shank Size 40 mm Shank Dia. × 260 mm OAL ; Steel
| Shank Height (H) | 26 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 36 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | Tool Type | Round Shanks |
| Overall Length (OAL) | 260 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
Product Features
| Family Description | CUT-GRIP holders for internal grooving and turning blades, DMIN=50 mm. | Country of Origin | Israel |
| Remarks | For both right and left hand applications |
Shipping Info
Package Weight
5.346
Related Documentation

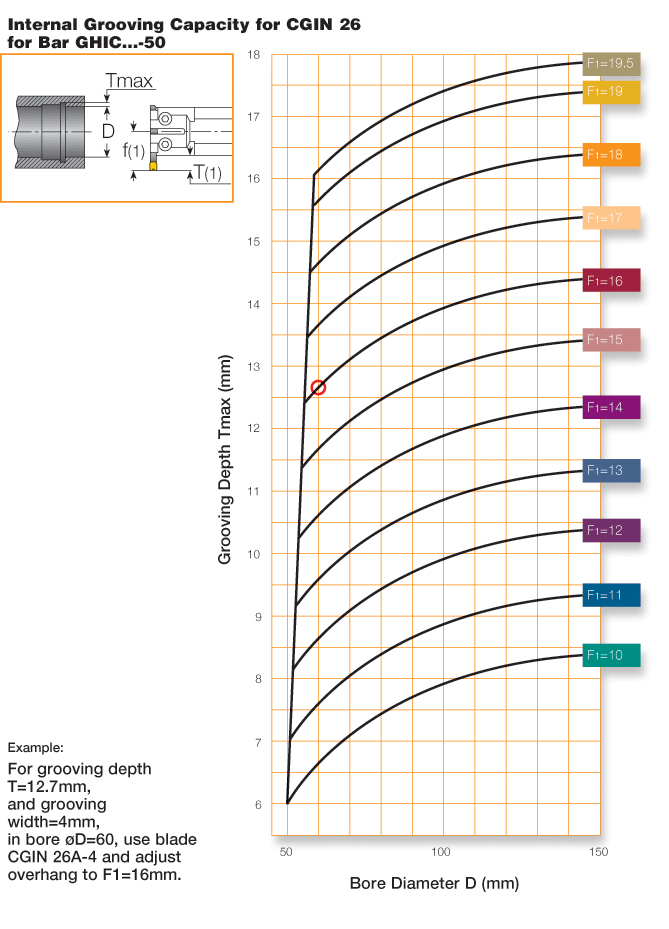

Holder bar for indexable blades. Adjustable extension, right- and left-hand applications. For bore diameters down to 50 mm, bar GHIC-50 with blades for GIPI/GIFI inserts.
