GHAPR 32-8

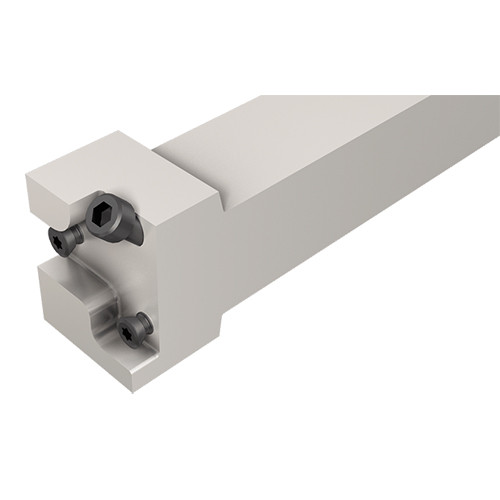

Grooving Toolholder; 32 mm × 32 mm Shank Size × 25.5 mm Max Depth × 155 mm OAL ; Steel

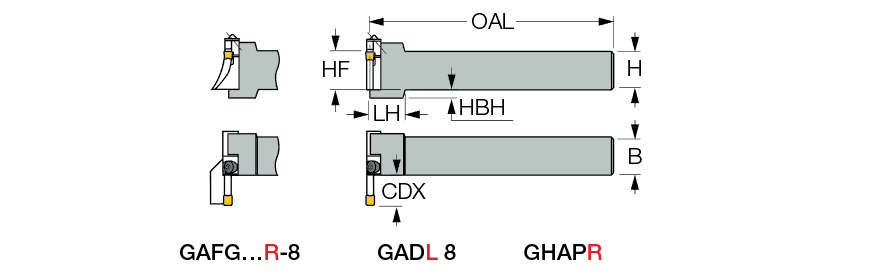

| Cutting Depth Maximum (CDX) | 25.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | Square Shanks |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Overall Length (OAL) | 155 mm | Head Bottom Offset Height (HBH) | 7 mm |
Product Features
| Family Description | External holders for grooving and turning with perpendicularly oriented GADR/L and GAFG adapters | Country of Origin | Israel |
| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) f=f1+f2 (see adapter dimensions) |
Shipping Info
Package Weight
3.131
