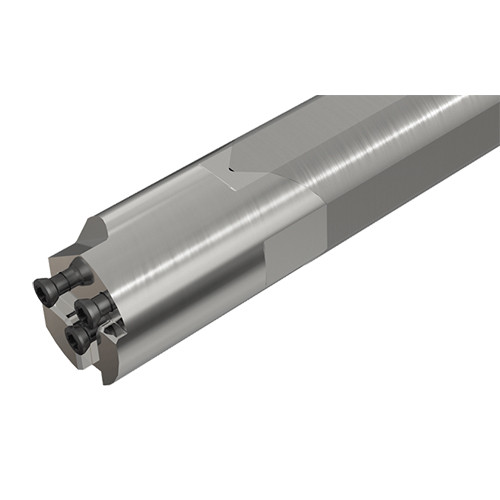

GHAIR 25SC-25
Grooving Toolholder; 25 mm Shank Dia. × 4 mm Max Depth × 200 mm OAL ; Steel

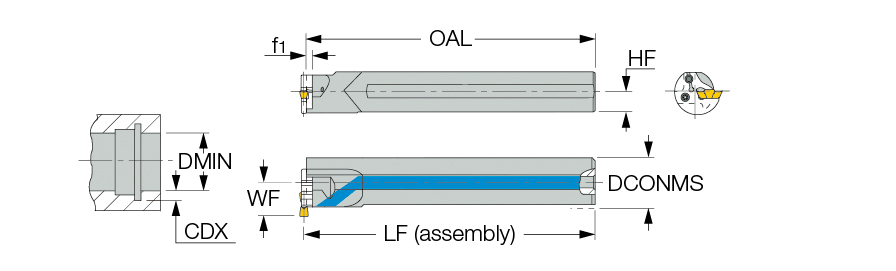

| Cutting Depth Maximum (CDX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 2.4 mm | Tool Type | Round Shanks |
| Overall Length (OAL) | 200 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
Product Features
| Family Description | Solid carbide bars with coolant holes for GEAIR/L adapters with GEPI / GEMI inserts, used for internal grooving, turning and threading. | Country of Origin | Israel |
| Remarks | For DMIN & CDX refer to GEAIR/L adapters. |
Shipping Info
Package Weight
2.557
