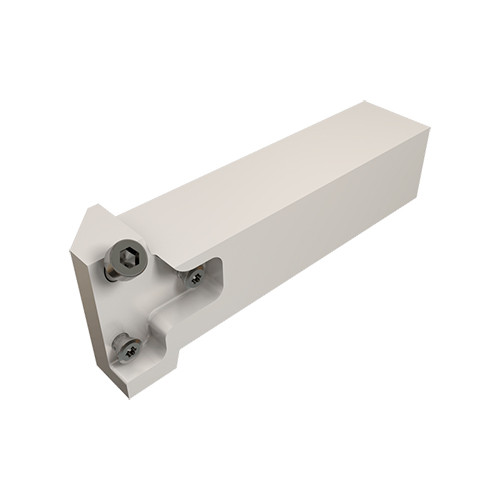

GHAL 32-8
Grooving Toolholder; 32 mm × 32 mm Shank Size × 25.5 mm Max Depth × 144.5 mm OAL ; Steel

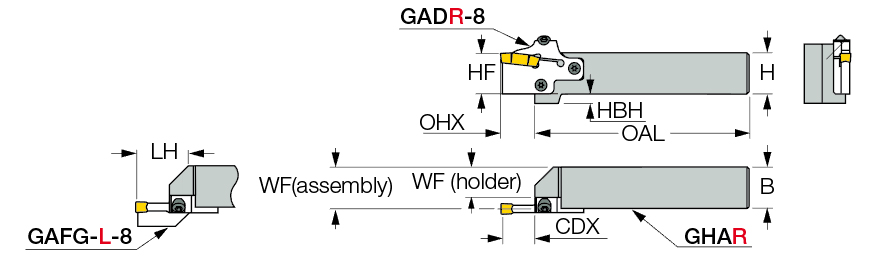

| Cutting Depth Maximum (CDX) | 25.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | Square Shanks |
| Functional Width (WF) | 23 mm | Measurement Type | Metric |
| Head Length (LH) | 45 mm | Head Bottom Offset Height (HBH) | 7 mm |
| Overall Length (OAL) | 144.5 mm |
Product Features
| Family Description | External holders for grooving and turning with GADR/L and GAFG adapters. | Country of Origin | Israel |
| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) WF(assembly)=WF(holder)+WF(adapter) (see adapter dimensions) |
Shipping Info
Package Weight
2.696
