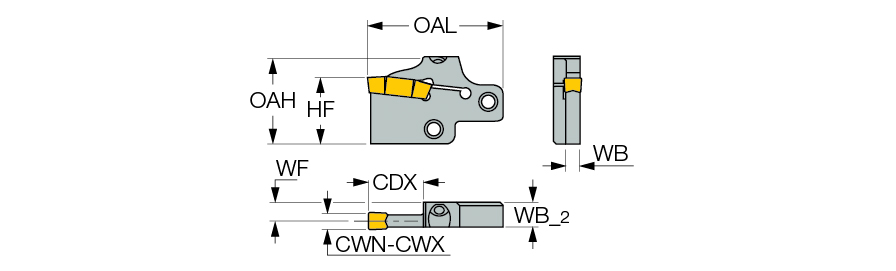

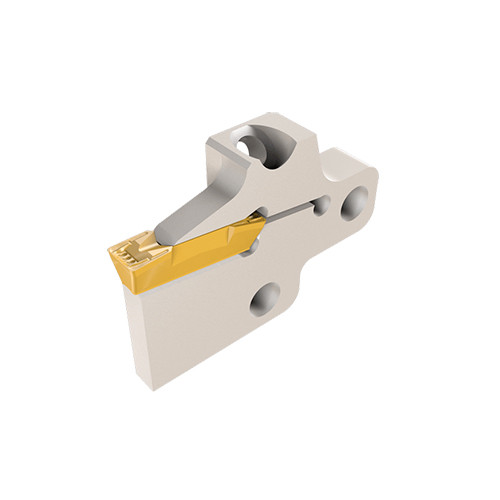

GADL 8
Grooving Toolholder ; 2.48″ OAL ; 0.26″ CW Min. ; 0.327″ CW Max. ; 1.004″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.26″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.327″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 1.004″ | Body Material | Steel |
| Body Width (WB) | 0.472″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.354″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.48″ |
Product Features
| Family Description | Adapters for up to .98″ deep machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.295
