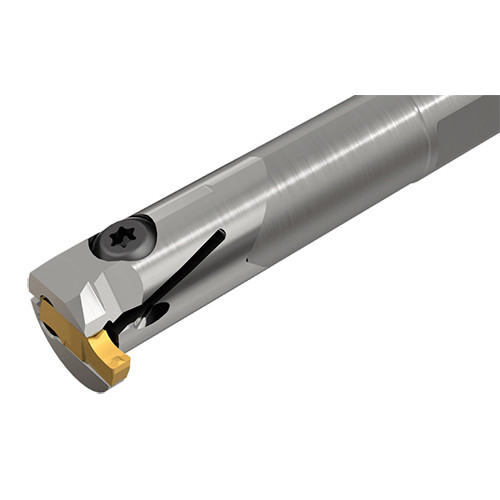

GHIL 20SC-3
Grooving Toolholder ; 200 mm OAL ; 20 mm Shank Dia. ; 2 mm CW Min. ; 3.5 mm CW Max. ; 4.5 mm Max Depth ; Steel

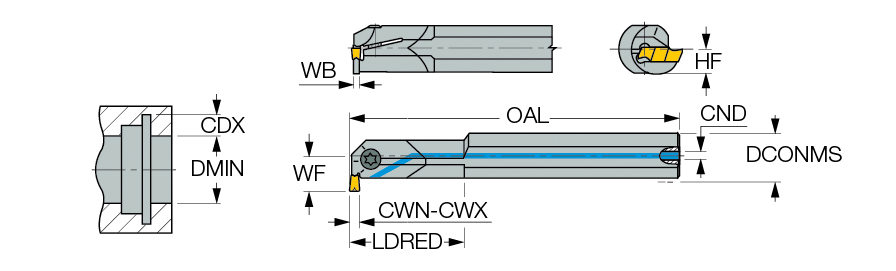

| Cutting Width Minimum (CWN) | 2 mm | Overall Length (OAL) | 200 mm |
| Cutting Width Maximum (CWX) | 3.5 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Depth Maximum (CDX) | 4.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 1.6 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 14.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 60 mm | Measurement Type | Metric |
Product Features
| Family Description | CUT-GRIP solid carbide bars with internal coolant holes, used for grooving and turning. | Country of Origin | Israel |
| Remarks | Tool head is made of steel. When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. |
Shipping Info
Package Weight
1.545
