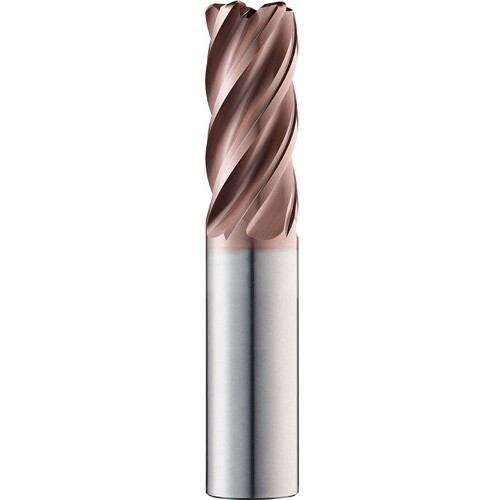

8.0 End Mill 5FL 1.00R TM - Z-CARB HPR 8x8x18x63
SQ End Mill; 8 mm Dia. × 18 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 1 mm RE ; 5 FL ; 45 mm LBS ; Carbide ; TiSiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 18 mm | Usable Length (LU) | 45 mm |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.096
