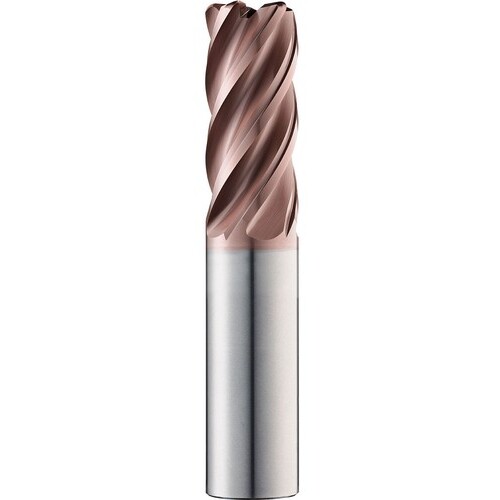

6X6X9X54 EM 5FL 0.50R TM
SQ End Mill; 6 mm Dia. × 9 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 0.5 mm RE ; 5 FL ; Carbide ; TiSiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 9 mm | Usable Length (LU) | 45 mm |
| Overall Length (OAL) | 54 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TiSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
