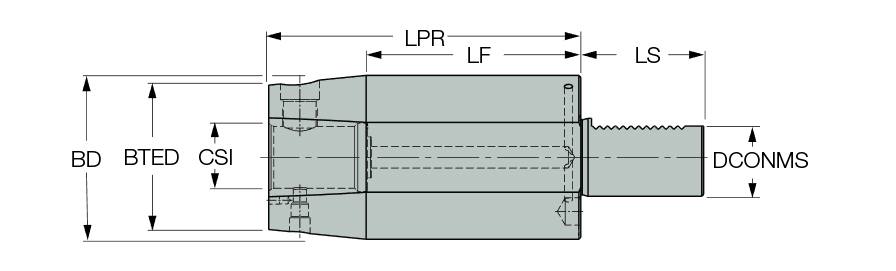

GHIA VDI40-CF5

Item # EH2801615

Brand: Iscar

MFG #: 2801615

Alternate MFG #: 02801615

Legacy Part #: EH2801615

UPC #: 02801615

Cutting Width Minimum (CWN)

0.118″

Connection Diameter Machine Side (DCONMS)

1.575″

Cutting Width Maximum (CWX)

0.126″

Coolant Supply Property (CSP)

External

Cutting Depth Maximum (CDX)

0.787″

Application

Shank Height (H)

1.26″

Body Material

Steel

Functional Width (WF)

0.189″

Tool Type

VDI-DIN69880

Overall Length (OAL)

5.906″

Measurement Type

Inch

Product Features

Family Description

Female CLICKFIT Holder with a VDI DIN69880 Standard Shank

Country of Origin

Israel

Remarks

For adaptation Click on "More Info".

Package Weight

14.522
