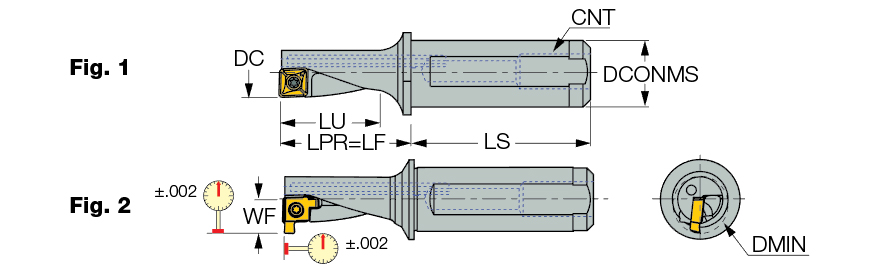

| Cutting Diameter (DC) | 0.472″ | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 0.571″ | Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Functional Width (WF) | 0.34″ | Body Material | Steel |
| Overall Length (OAL) | 3.07″ | Tool Type | Indexable Turn & Groov Tools |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
Product Features
| Family Description | Multifunction drilling, boring, facing, external turning and internal grooving tools | Country of Origin | S.Korea |

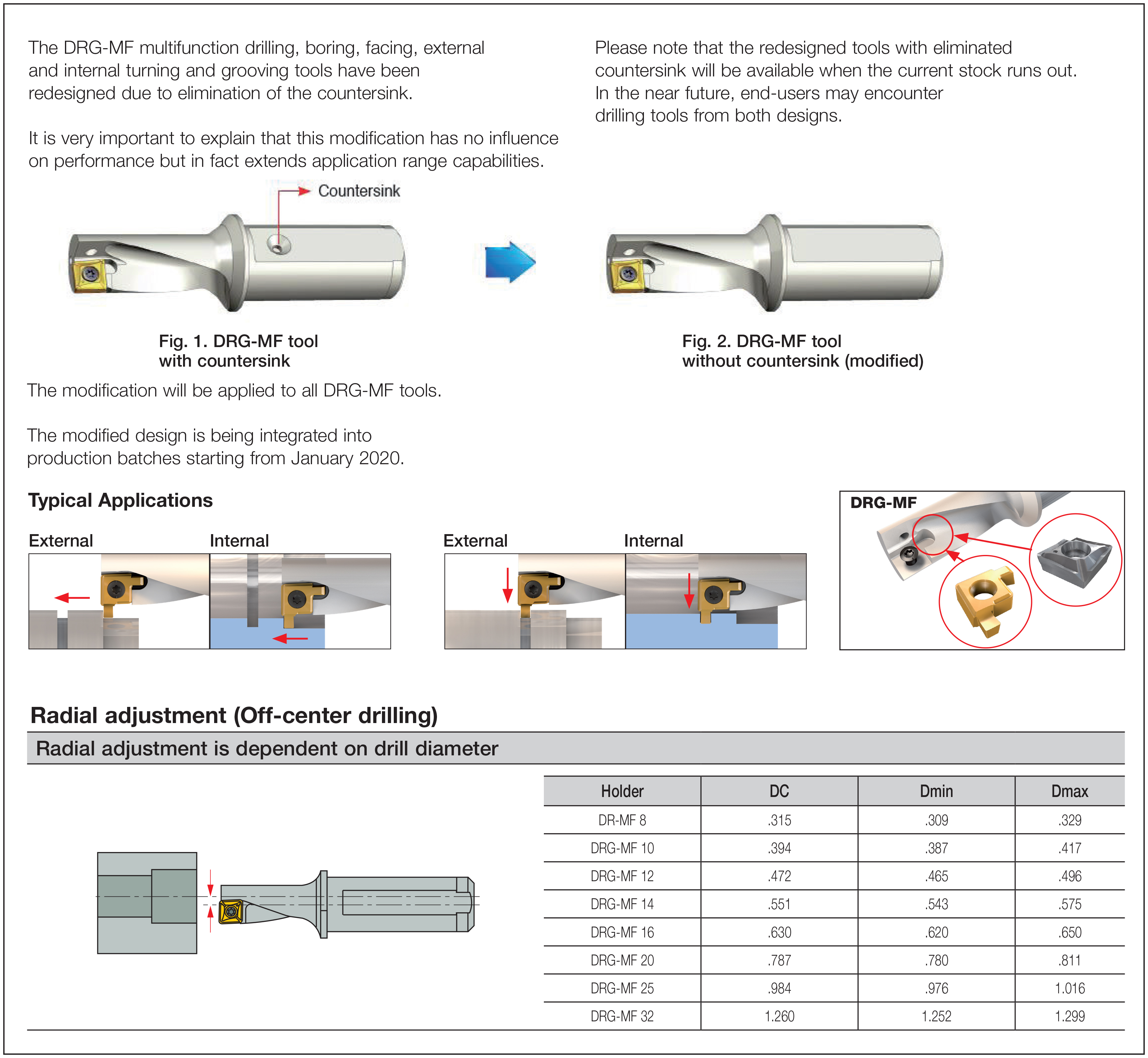

| Remarks | In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes |
Shipping Info
Package Weight
0.201
