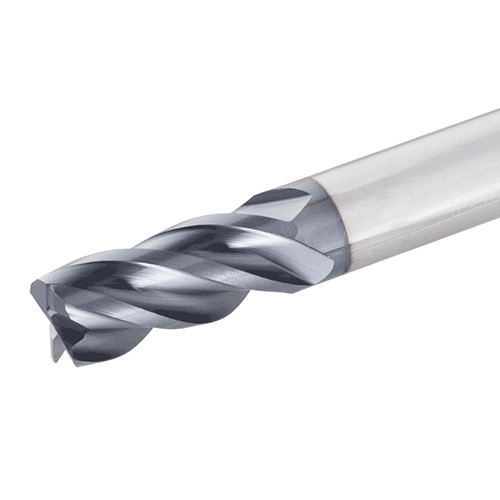

ECKI-H4R 750-1.50C09CF-4 IC900
4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD.

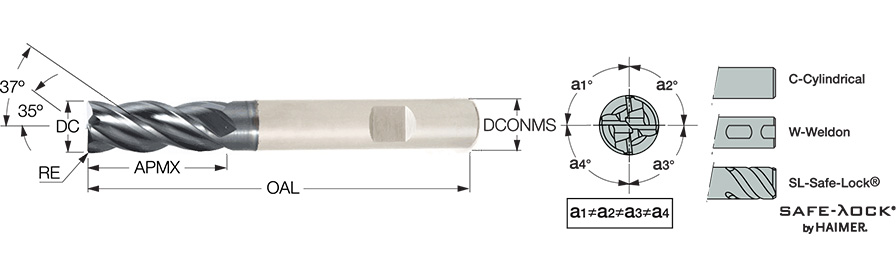

| Cutting Diameter (DC) | 3/4″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.09″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |

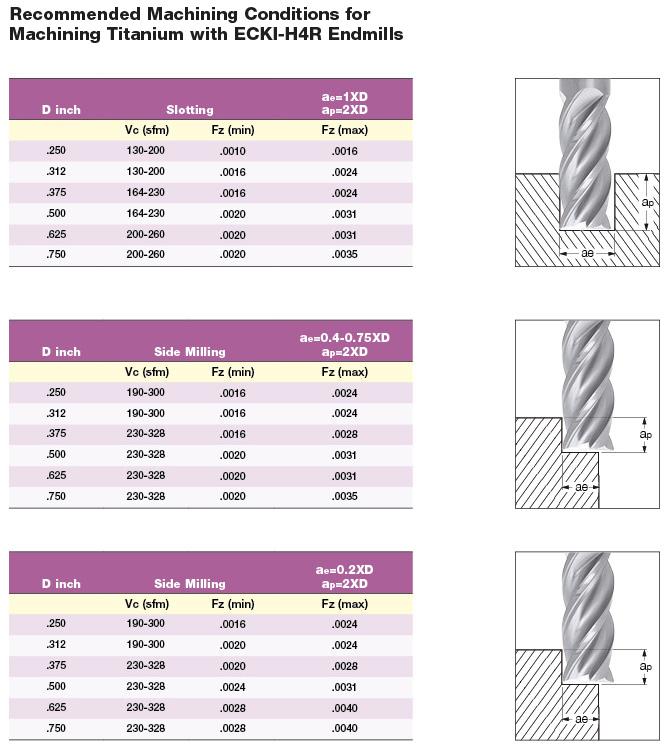

| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.0035 ″/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 36 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 1-1/2″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.785
