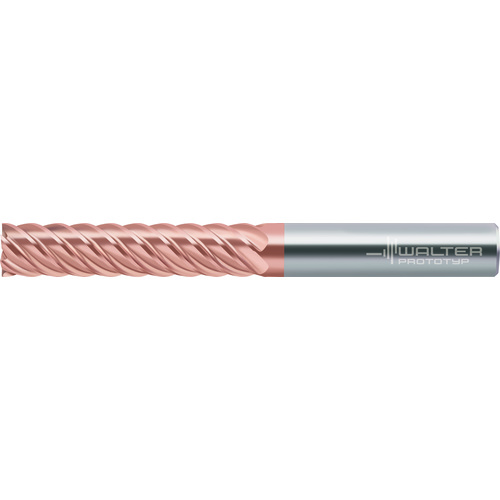

?MC187-06.0A6L-WB10TG EM
SQ End Mill; 6 mm Dia. × 26 mm LOC × 6 mm Shank Dia. × 75 mm OAL ; 0.1 mm RE ; 6 FL ; 26 mm LBS ; Carbide ; TiAlSiN ; Series MC187
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Usable Length (LU) | 26 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 26 mm | Grade | WB10TG |
| Overall Length (OAL) | 75 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Metric |
| Shank Type | Round | Series/List # | MC187 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.3
