?MC089-06.0A4B050-WB10TG

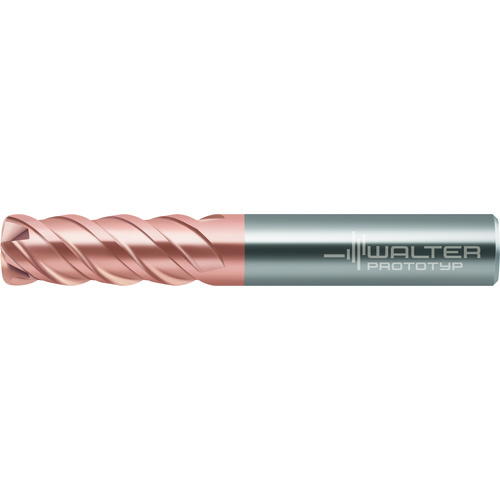

SQ End Mill; 6 mm Dia. × 0.2 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.5 mm RE ; 4 FL ; 15 mm LBS ; Carbide ; TiAlSiN ; Series MC089-WB10TG
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Usable Length (LU) | 15 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 0.2 mm | Grade | WB10TG |
| Overall Length (OAL) | 57 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 50 Degrees | Series/List # | MC089-WB10TG |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.3
