TH101326

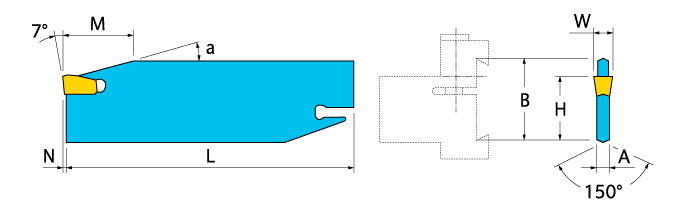

Grooving Toolholder ; 5.9″ OAL ; 0.98″ Shank Height ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.126″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 0.787″ | Body Material | Steel |
| Shank Height (H) | 0.98″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.189″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.9″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.407
