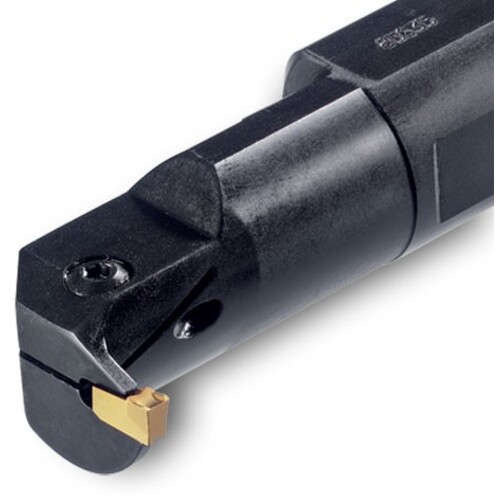

THR61924C118
Grooving Toolholder ; 12″ OAL ; 0.67″ Shank Height ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.118″ | Overall Length (OAL) | 12″ |
| Cutting Width Maximum (CWX) | 0.126″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 0.67″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2.05″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.189″ | Measurement Type | Inch |
| Head Length (LH) | 2.5″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
4.971
