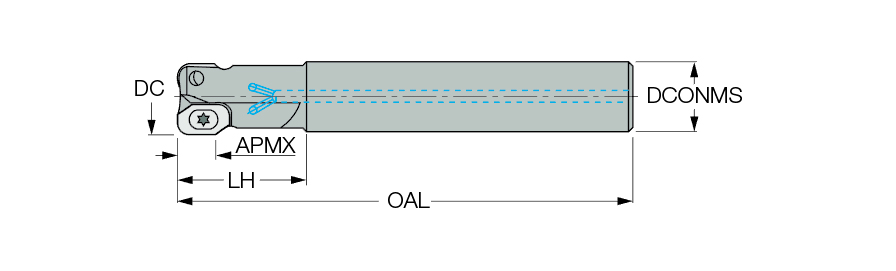

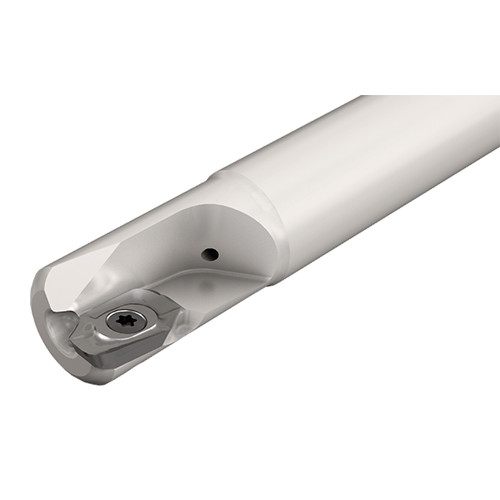

HM90 EAL-D125-C125L8-16BR
Indexable End Mill; 1-1/4″ Dia. × 0.6102″ LOC × 1-1/4″ Shank Dia. × 8″ OAL ; 2 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 2.23″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | 90° Indexable for Aluminum |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.6102″ | Corner Radius (RE) | 0.1969″ |
| Overall Length (OAL) | 8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 22.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM90 APCR 160550R-P | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 2.36 Lbs |
Product Features
| Family Description | Long reach endmills, carrying HM90 APCR 1605... inserts with corner radii equal or larger than .197″, for machining aluminum | Country of Origin | Israel |
| Remarks | Inserts with corner radii smaller than .197 to be not used on BR tools For adaptation, click on More Info |
