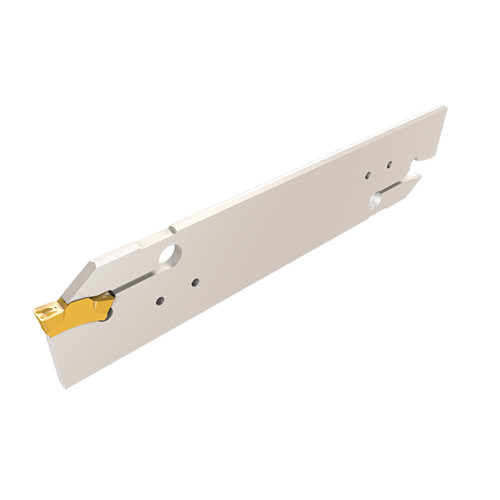

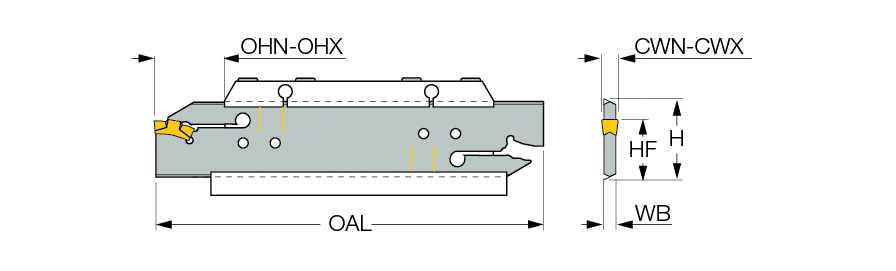

TGHN 26-5D
Grooving Toolholder ; 4.331″ OAL ; 1.024″ Shank Height ; 0.197″ CW Min. ; 0.197″ CW Max. ; Steel
| Cutting Width Minimum (CWN) | 0.197″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.197″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Shank Height (H) | 1.024″ | Body Material | Steel |
| Body Width (WB) | 0.157″ | Tool Type | Turn-Groove Tools |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
Product Features
| Family Description | Double-ended blades carrying TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
| Remarks | Use the drilled holes on blade for min. and max. overhang Grooving depthis limited by the insert |
Shipping Info
Package Weight
0.172
