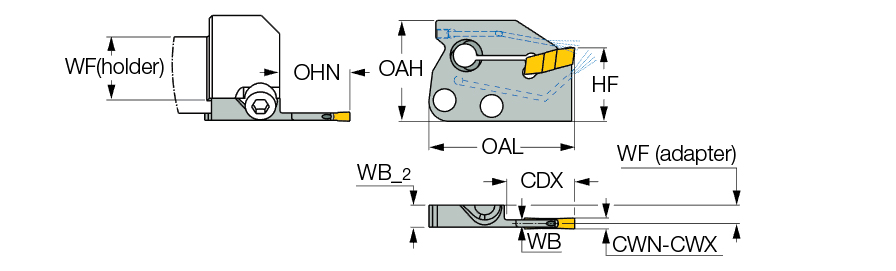

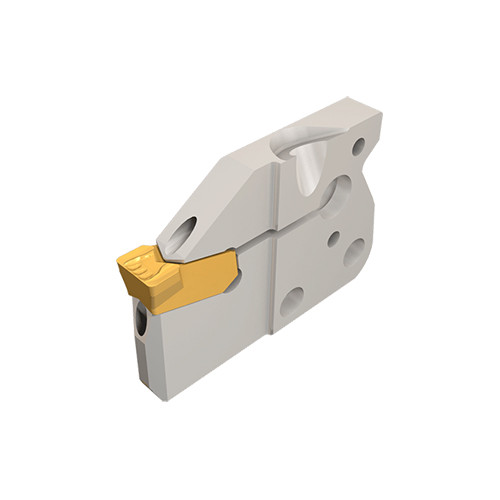

CGPAD 4L-T16-JHP
Grooving Toolholder ; 1.654″ OAL ; 0.157″ CW Min. ; 0.197″ CW Max. ; 0.63″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 0.197″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.63″ | Body Material | Steel |
| Body Width (WB) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.215″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.654″ |

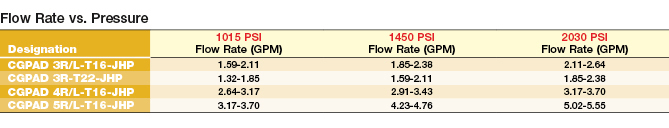

Product Features
| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels carrying CUT-GRIP inserts. | Country of Origin | Israel |
| Remarks | For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
Package Weight
0.103
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
