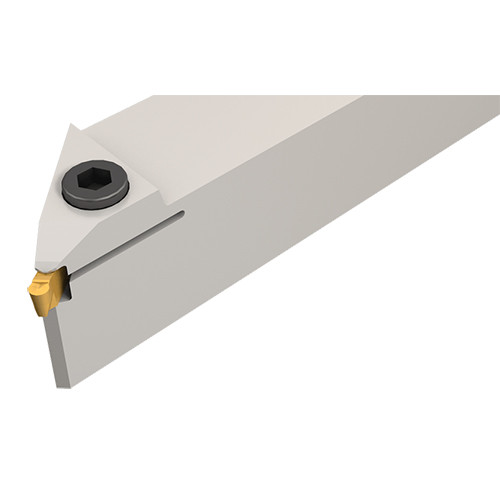

GHMUR 16
Grooving Toolholder; 0.63″ × 0.63″ Shank Size to 0.189″ Width × 4.409″ OAL ; Steel

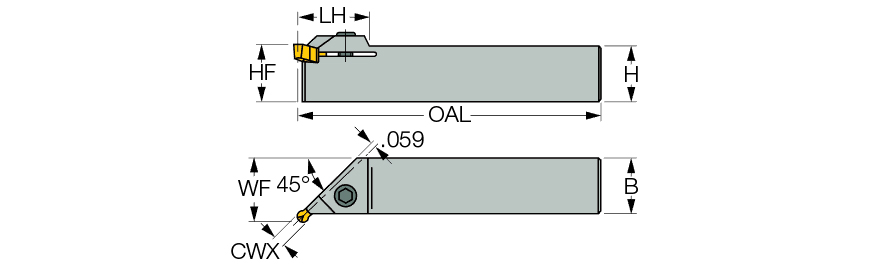

| Cutting Width Maximum (CWX) | 0.189″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 0.63″ | Application | | Ext. Undercut | |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Functional Width (WF) | 0.748″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 0.984″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.409″ |
Product Features

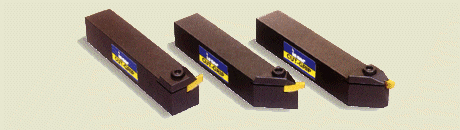

| Family Description | CUT-GRIP external holders for 45° undercutting. | Country of Origin | Israel |
| Remarks | For D>3.94, GIP/GIF inserts can be used (clearance types UN, D or G are not required). To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.564
