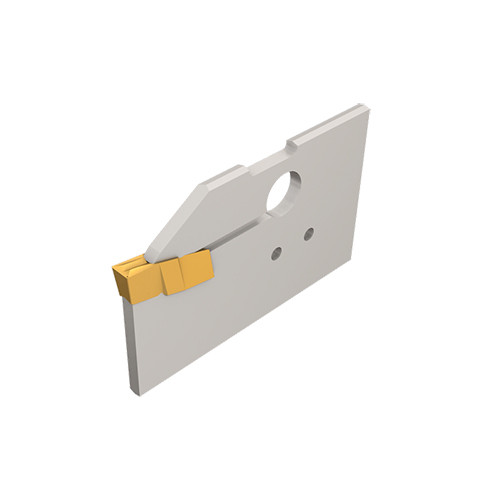

CGHN 32-3S

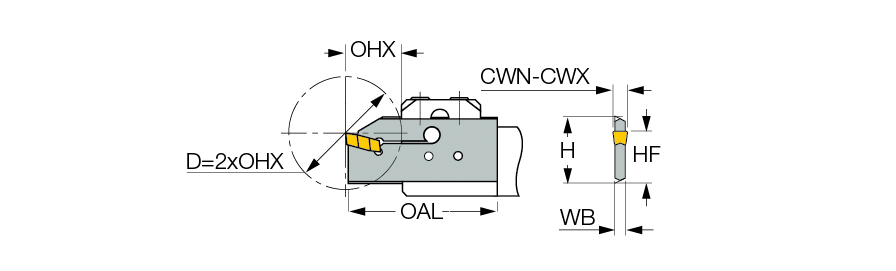

Grooving Toolholder ; 2.008″ OAL ; 1.26″ Shank Height ; 0.11″ CW Min. ; 0.157″ CW Max. ; Steel
| Cutting Width Minimum (CWN) | 0.11″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1.26″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 2.008″ | Measurement Type | Inch |
Product Features
| Family Description | Single-ended blades, used for grooving and turning. | Country of Origin | Israel |
| Remarks | When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
Package Weight
0.068
