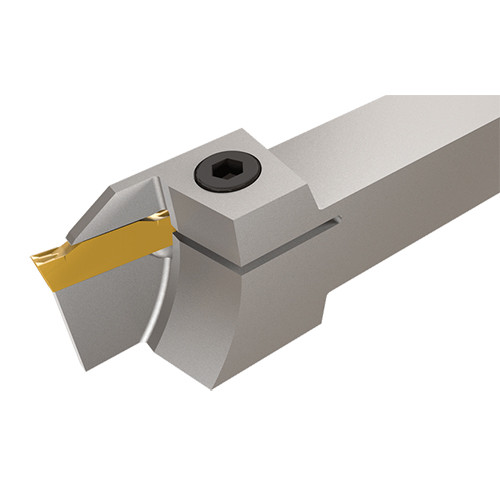

PHGL 19-2.4
Grooving Toolholder ; 4-1/2″ OAL ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.094″ CW Min. ; 1/8″ CW Max. ; 0.67″ Max Depth ; Steel

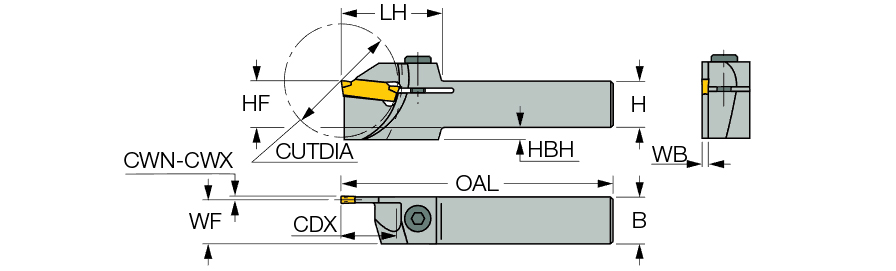

| Cutting Width Minimum (CWN) | 0.094″ | Head Length (LH) | 1.3″ |
| Cutting Width Maximum (CWX) | 1/8″ | Overall Length (OAL) | 4-1/2″ |
| Cutting Depth Maximum (CDX) | 0.67″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Body Width (WB) | 0.075″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.71″ | Measurement Type | Inch |
Product Features
| Family Description | Holders for external deep grooving and turning, up to .67″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.716
