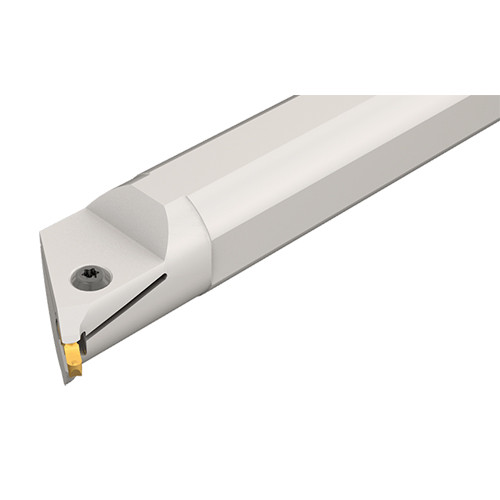

GHIUL 25.4U
Grooving Toolholder; 1″ Shank Dia. to 0.252″ Width × 0.118″ Max Depth × 7″ OAL ; Steel

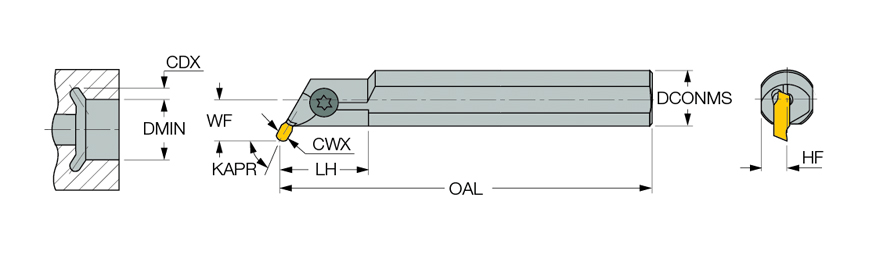

| Cutting Width Maximum (CWX) | 0.252″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Depth Maximum (CDX) | 0.118″ | Coolant Supply Property (CSP) | External |
| Minimum Bore Diameter (DMIN) | 1″ | Application | | Int. Profiling | Int. Undercut & Turning | |
| Functional Width (WF) | 0.63″ | Body Material | Steel |
| Head Length (LH) | 1.95″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 7″ | Measurement Type | Inch |
Product Features
| Family Description | CUT-GRIP internal undercutting and turning bars. | Country of Origin | Israel |
Shipping Info
Package Weight
1.396
Related Documentation
Single-ended inserts GMP for minimum bore diameter 12.5 mm, and double-ended GIPI for minimum bore diameter 20 mm. Available also with internal coolant for improved chip flow and tool life.
