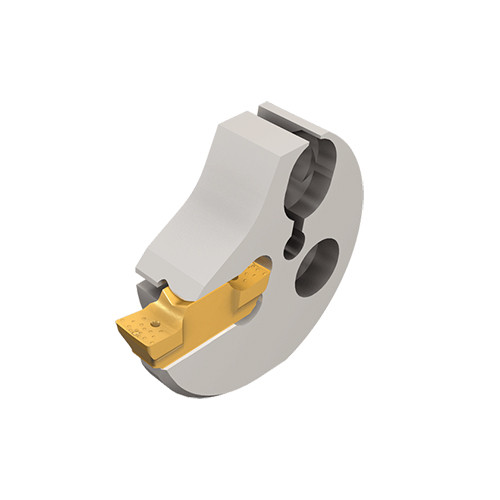

GEAIL 25-2
Grooving Toolholder ; 0.075″ CW Min. ; 0.094″ CW Max. ; 0.157″ Max Depth ; Steel

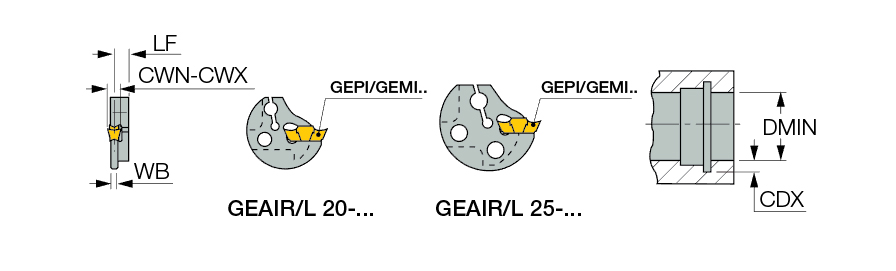

| Cutting Width Minimum (CWN) | 0.075″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.094″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.157″ | Body Material | Steel |
| Body Width (WB) | 0.063″ | Tool Type | Indexable Turn & Groov Tools |
| Minimum Bore Diameter (DMIN) | 0.984″ | Measurement Type | Inch |
| Functional Width (WF) | 0.134″ |
Product Features
| Family Description | Internal grooving and turning adapters for GEMI and GEPI inserts. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.029
