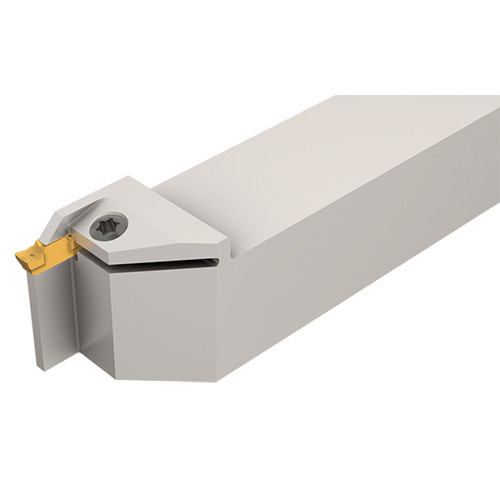

GEHSR 25-2
Grooving Toolholder ; 4.724″ OAL ; 0.984″ Shank Height ; 0.984″ Shank Width ; 0.087″ CW Min. ; 0.126″ CW Max. ; 0.268″ Max Depth ; Steel

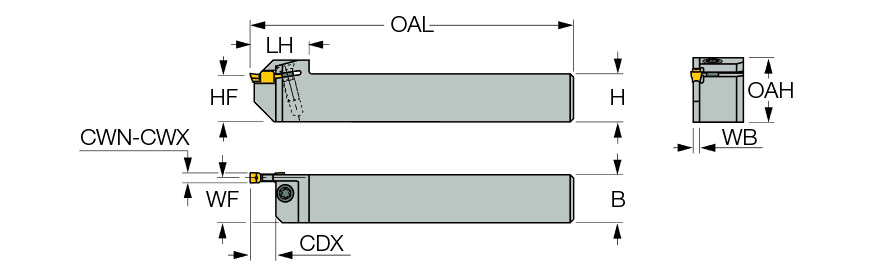

| Cutting Width Minimum (CWN) | 0.087″ | Head Length (LH) | 0.787″ |
| Cutting Width Maximum (CWX) | 0.126″ | Overall Length (OAL) | 4.724″ |
| Cutting Depth Maximum (CDX) | 0.268″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 0.984″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 0.984″ | Body Material | Steel |
| Body Width (WB) | 0.071″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.949″ | Measurement Type | Inch |
Product Features
| Family Description | External machining holders, for Swiss-type and automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
1.283
