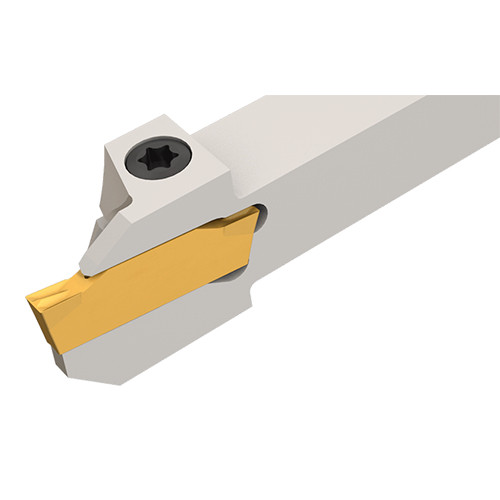

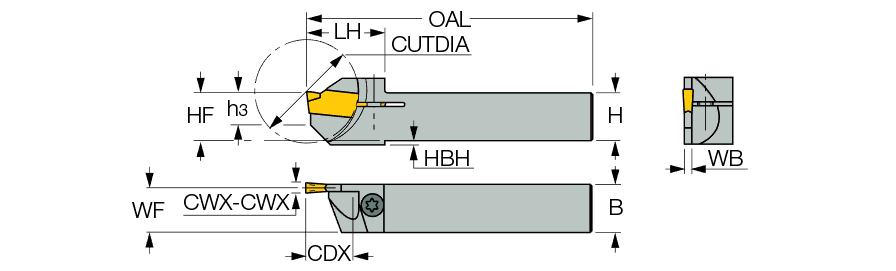

PHSR 10-2.4
Grooving Toolholder ; 5.906″ OAL ; 0.394″ Shank Height ; 0.394″ Shank Width ; 0.094″ CW Min. ; 1/8″ CW Max. ; Steel
| Cutting Width Minimum (CWN) | 0.094″ | Overall Length (OAL) | 5.906″ |
| Cutting Width Maximum (CWX) | 1/8″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 0.394″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Width (B) | 0.394″ | Body Material | Steel |
| Body Width (WB) | 0.075″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.354″ | Measurement Type | Inch |
| Head Length (LH) | 0.709″ | Head Bottom Offset Height (HBH) | 0.08″ |
Product Features
| Family Description | External machining holders for Swiss-type and automatic machines for GDMW/GDMY inserts | Country of Origin | Israel |

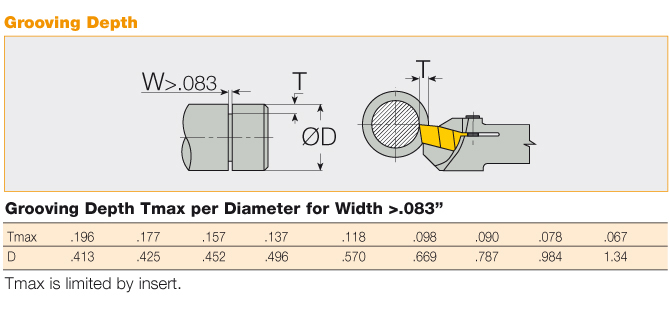

| Remarks | CDX=Max depth capacity, Click More info to see the chart |
Shipping Info
Package Weight
0.313
