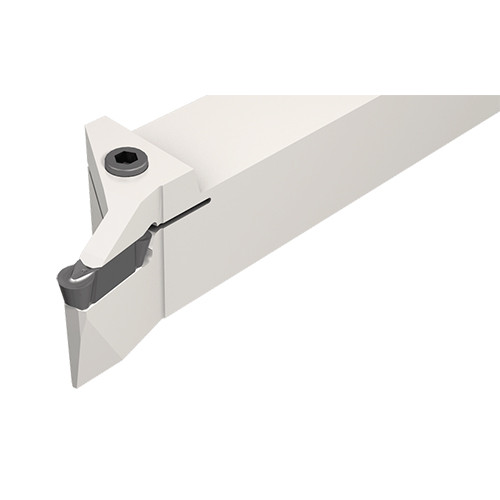

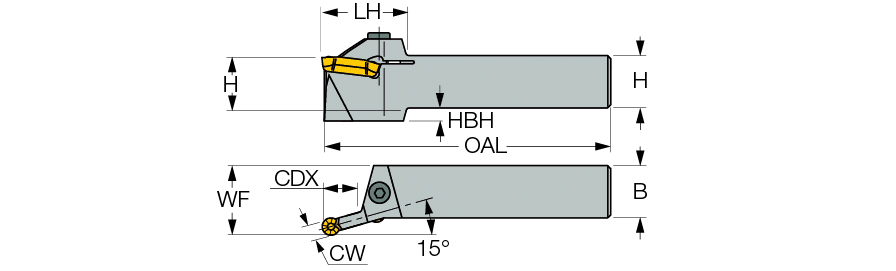

GHDKL 31.7-8
Grooving Toolholder; 1-1/4″ × 1-1/4″ Shank Size × 3/4″ Max Depth × 7″ OAL ; Steel
| Cutting Depth Maximum (CDX) | 3/4″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1-1/4″ | Application | | Ext. Turning Aluminum Wheels | Int. Machining Aluminum Wheels | |
| Shank Width (B) | 1-1/4″ | Body Material | Steel |
| Functional Width (WF) | 1.56″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 1.73″ | Measurement Type | Inch |
| Overall Length (OAL) | 7″ |
Product Features
| Family Description | External and internal holders for machining aluminum wheels | Country of Origin | Israel |
Shipping Info
Package Weight
2.884
Related Documentation
Holders with approach angles of 45° and 15°. Using GIPA and GIDA inserts, very positive rake improves chip control, surface quality and efficiency. Used for aluminum, magnesium and other soft materials.
