PADL 2.4

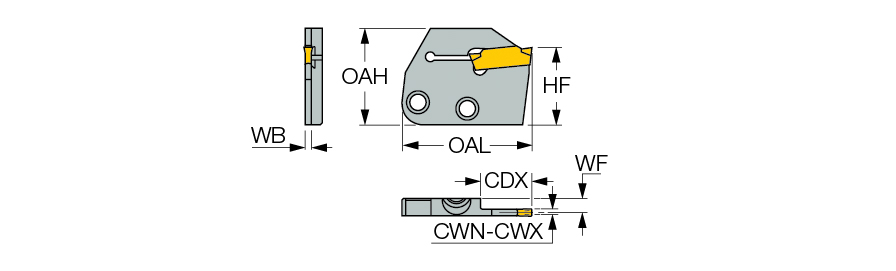

Grooving Toolholder ; 1.614″ OAL ; 0.094″ CW Min. ; 1/8″ CW Max. ; 0.642″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.094″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Cutting Depth Maximum (CDX) | 0.642″ | Body Material | Steel |
| Body Width (WB) | 0.075″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.165″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.614″ |
Product Features

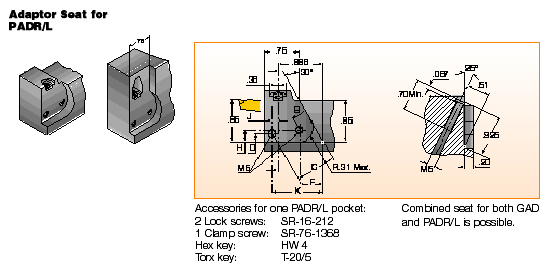

| Family Description | Adapters for GDMW/GDMY groove-turn inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.073
