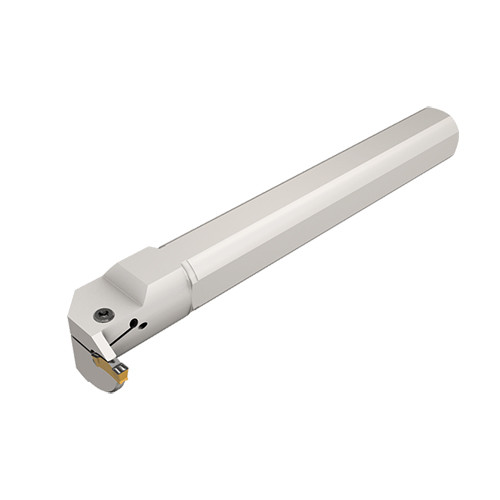

TGIR 19C-3
Grooving Toolholder ; 7.1″ OAL ; 3/4″ Shank Dia. ; 0.118″ CW Min. ; 0.118″ CW Max. ; 0.22″ Max Depth ; Steel

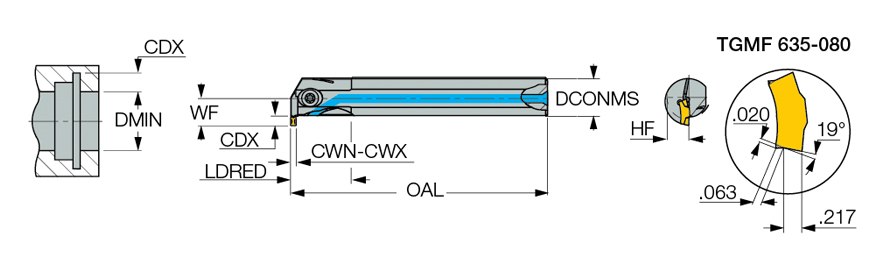

| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Width Maximum (CWX) | 0.118″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.22″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 0.95″ | Body Material | Steel |
| Functional Width (WF) | 0.56″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 1-1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 7.1″ |
Product Features
| Family Description | Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
Shipping Info
Package Length
7.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.752
Related Documentation

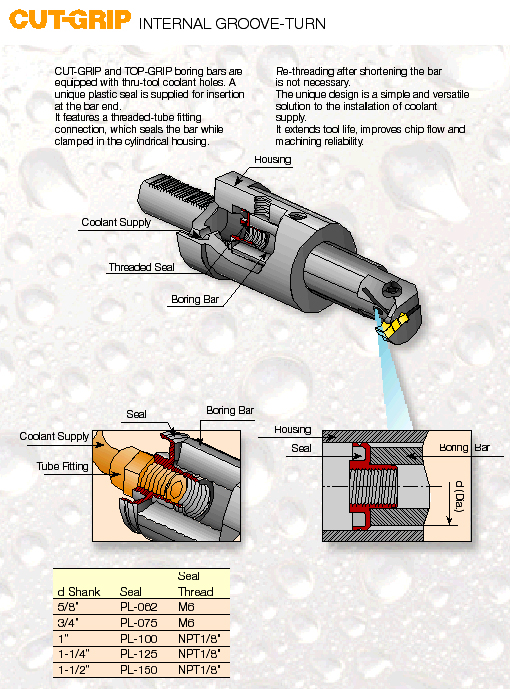

Bar holders with internal coolant supply for internal grooving and multi-directional turning machining with TOP-GRIP TGMF inserts. Excellent evacuation of chips. Minimum bore diameter .81″.
