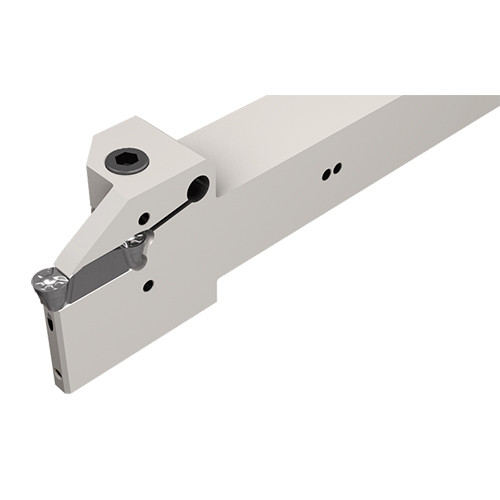

FGHR 25.4C-8A
Grooving Toolholder; 1″ × 1″ Shank Size × 1″ Max Depth × 7″ OAL ; Steel

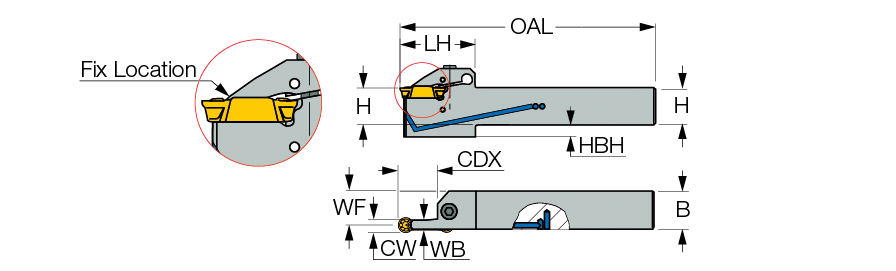

| Cutting Depth Maximum (CDX) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 1″ | Application | | Ext. Profiling | Ext. Turning Aluminum Wheels | |
| Shank Width (B) | 1″ | Body Material | Steel |
| Body Width (WB) | 0.232″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.88″ | Measurement Type | Inch |
| Head Length (LH) | 1.97″ | Head Bottom Offset Height (HBH) | 0.3″ |
| Overall Length (OAL) | 7″ |
Product Features
| Family Description | Tools with internal coolant holes, very strong insert grip, used for interrupted cuts and back turning of aluminum wheels. | Country of Origin | Israel |

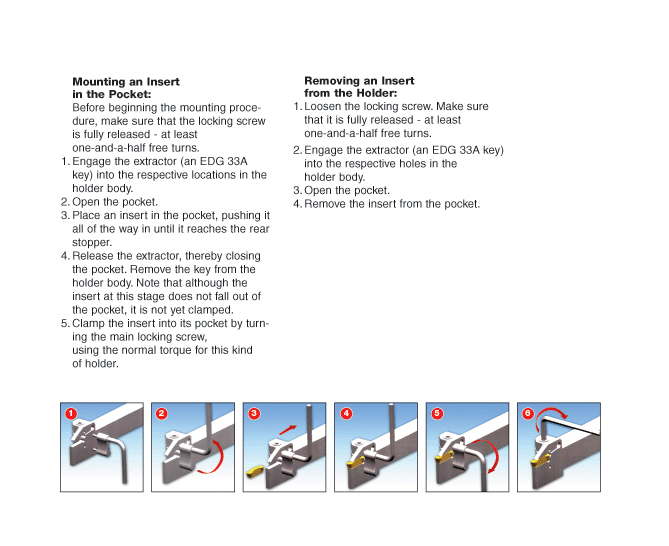

| Remarks | Upper jaw with hard coating to sustain chip deflection Note: For mounting and removing the inserts, click on More Info |
Shipping Info
Package Weight
2.044
