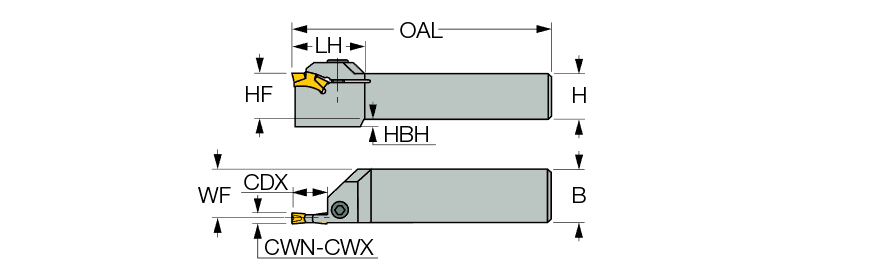

TGDR 1616-4M
Grooving Toolholder ; 3.937″ OAL ; 0.63″ Shank Height ; 0.63″ Shank Width ; 0.157″ CW Min. ; 0.197″ CW Max. ; 0.354″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.157″ | Overall Length (OAL) | 3.937″ |
| Cutting Width Maximum (CWX) | 0.197″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.354″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Shank Height (H) | 0.63″ | Body Material | Steel |
| Shank Width (B) | 0.63″ | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 0.13″ | Measurement Type | Inch |
| Functional Width (WF) | 0.559″ | Head Bottom Offset Height (HBH) | 0.24″ |
| Head Length (LH) | 1.268″ |
Product Features
| Family Description | Holders for TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |

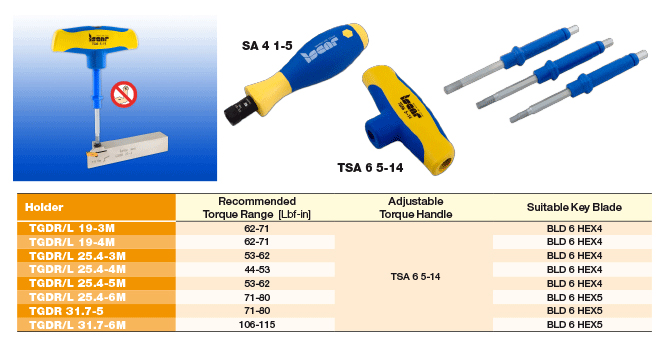

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.527
Related Documentation
Tools for multi-directional machining with support under the arc-shaped insert, for turning, grooving and parting with maximum stability.
